Heros / fire service vacuum

Powerful, compact and equipped with the latest technology



Pumping out of water after floods, fire damage restoration, pipe damage, flat roof refurbishment, pond or pool cleaning and other cleaning tasks.

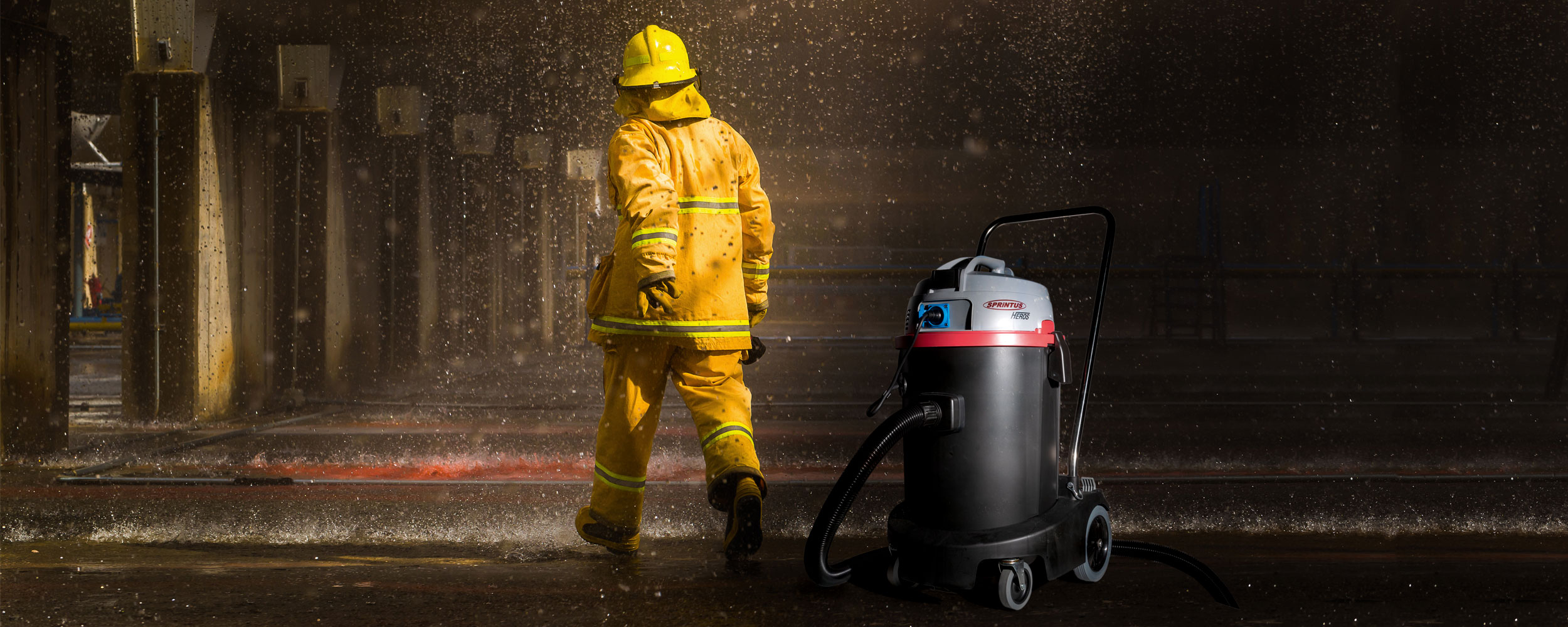

This modern professional vacuum pump is specifically designed for fire brigades and the German Federal Agency for Technical Relief (THW), and long-term use with all types of floods and high water. Contaminated wastewater, sludge, stones, wood and other non-flammable solids and suspended matter can be efficiently sucked away. Featuring a range of close to 20 meters, emphasis is on the highest degree of safety and performance.
The Heros comes with IP 68 connectors with bayonet retaining rings and protective covers, safety switches and an IP 54 socket as standard. The impact-resistant and compact plastic tank allows optimum mobility with a low overall weight of only 19 kg.
Further standard fittings such as the separate connectible pump, solid rubberised wheels with practical locking brakes, and fire brigadeapproved Storz coupling provides you with a reliable partner at your side.

3D view

Technical data

  • 230 V / 50 Hz

  • 2200 W

  • 1300 W

  • 900 W

  • 230 mbar

  • 70 litres/sec.

  • 14,000 litres/h

  • 150 litres / min.

  • 230 litres / min

  • 20 mm

  • 9 m

  • plastic

  • 45 litres (gross)

  • c-pipe

  • 7 m

  • 10 m

  • 38 mm

  • 38 mm

  • 10 m

  • 19 kg

  • 49 x 44 x 77 cm

Equipment and accessories

Heros (Art.-No. 113.001)

2 x 0,5 m suction tubes stainless steel ø 38 mm, 7 m suction hose, 10 m discharge hose, integrated wastewater pump, filter net with zipper, crevice nozzle 240 mm, Metal floor nozzle 450 mm width

Standard Accessories

Suction pipe, stainless steel, single

102.018

Floor nozzle metal 450 mm

102.051

Crevice nozzle

102.016

Filter net

110.048

Suction hose complete 7 m

110.049

C-hose pump side complete

110.053
